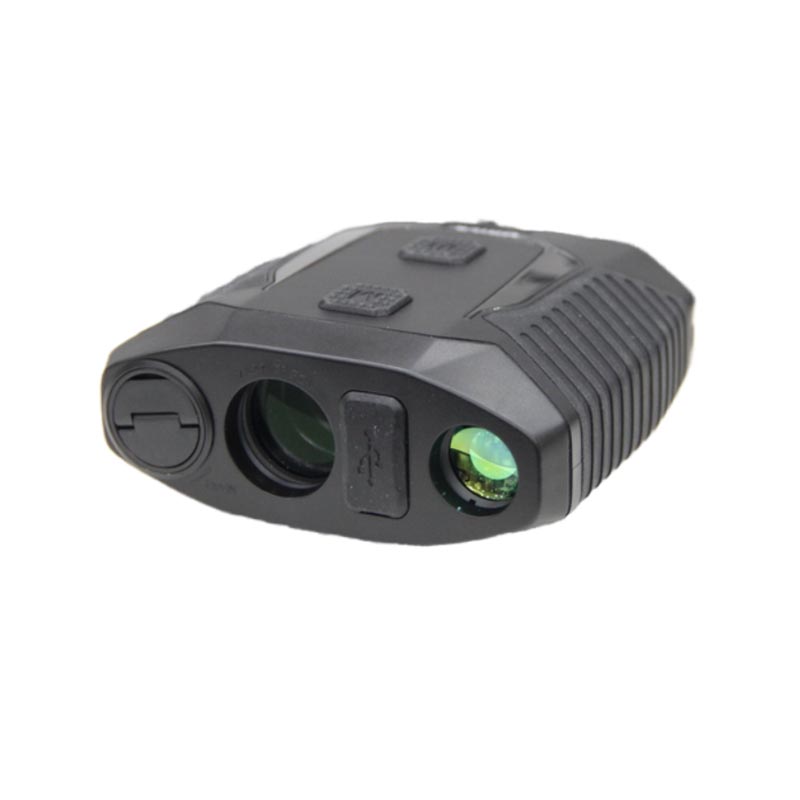

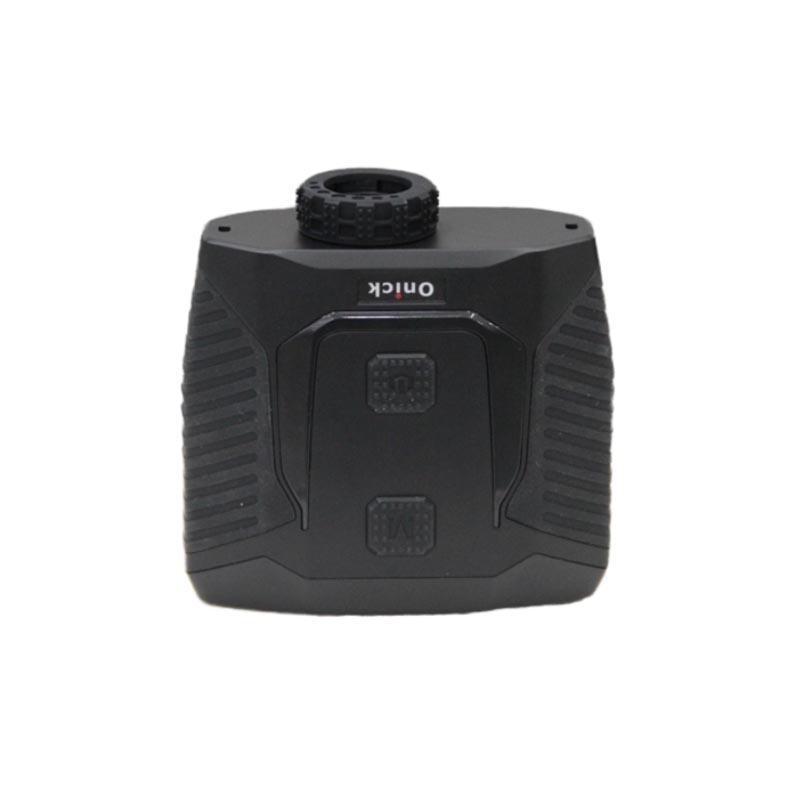

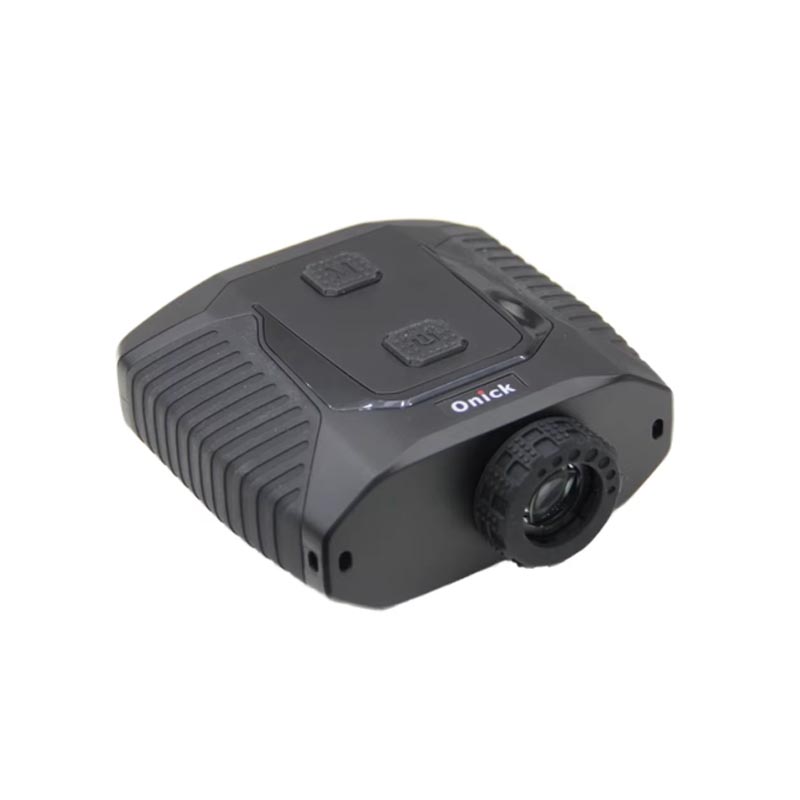

LF5000 Laser Rangefinder Telescope
Professional customer service online to answer your
questions and solve your problems！
Product Details
LF5000 binocular long-distance laser rangefinder can measure quickly, auto-focus, measure distance, accurately calculate average value, and has powerful data storage function. Optional azimuth and pitch angle functions, wide range of functions, small size, easy to carry and easy to operate. It is widely used in rivers, waterways, benchmarks, telecommunications, cables, geological surveys, meteorology, airports, forests and other industries.
1. Measuring distance 5000m, accuracy 0.5m;
2. High-resolution lens, with measurement vibration reminder function;
3. Multiple measurement modes, single measurement, continuous measurement, distance measurement, angle measurement, horizontal distance, vertical height, two-point height measurement;
4. Support Bluetooth, with data transmission hole, can transmit data;

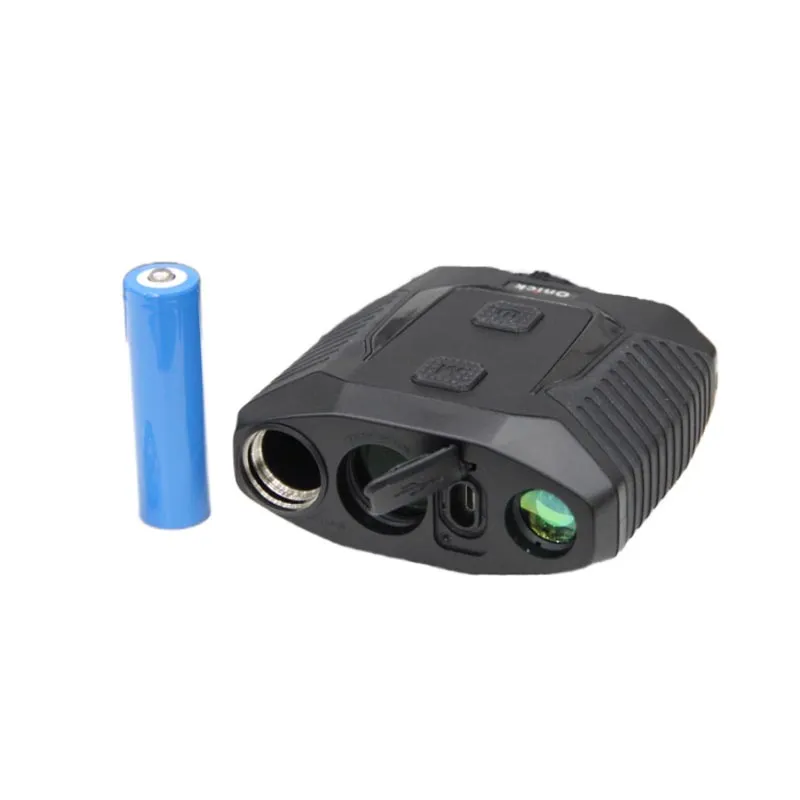

5. Use 18650 large-capacity battery, sealed battery compartment, convenient for outdoor use and battery replacement;
Electricity, industry, forestry, security, geological exploration, construction, hunting, camping and mountaineering, etc.
| Model | Onick LF5000 |
| Range measurement range | 10~5000m |
| Measurement accuracy | ±0.5m |
| Angle range | ±90° |
| Angle accuracy | ±0.25° |
| Laser type | 905nm (Class 1 laser) |
| Magnification | 7X |
| Objective diameter | 24 mm |
| Effective eyepiece | 16 mm |
| Exit pupil diameter | 3.4 mm |
| Exit pupil distance | 15.5 mm |
| Field of view | 6.6° |
| Focus mode | Eyepiece focus |
| Measurement unit | Meters/yards |
| Vibration reminder | NO |
| Flagpole lock | Yes |
| Data transmission hole | Yes |
| Bluetooth | Support |
| Distance measurement mode | Single measurement, continuous measurement, distance measurement, angle measurement, horizontal distance, vertical height, two-point height measurement |
| Battery | 18650 (3.7V 2000mAh) |
| Tripod | 1/4 inch threaded hole (standard camera tripod) |
| Product weight | 223g (without battery) |
| Dimensions | 101*99*46 (mm) |
